We are well established organization in the field of manufacturing, supplying and exporting of Spot Welding Machines ,Projection Welding Machines ,Capacitor Discharge Stud Welding Machines, Drawn Arc Stud Welding Machines ,Shear Connectors and many more in addition to this we also offer Stud Welding and Deck Sheeting Services.

Latest update

Capacitor Discharge projection Welding Machine.
view all updates 1528438695


Capacitor Discharge Projection Welding Machine 5KVA to 30 KVA
Capacitor Discharge Projection Welding Machine 5KVA to 30 KVA INR 0 INR 0 This is a resistance welding process in which energy is stored in a bank of capacitors by charging to a pre-set voltage and then discharged through a transformer. As very high current is passed in very short duration of time the resulting weld quality is excellent. CD Projection Welding Machine is ideally suitable for welding thick material within the shortest period. It is the best choice for bulk production within consistent quality for manufacture of wide range of products. As a leading manufacturer of stud and projection welding machines we ensure easy to operate range of machines with customization to meet the needs and demands of the clients. Advantages: Voltage fluctuations do not affect the weld quality. Low Installation and operating cost of the machine. Significant reduction in power (Kva) demand as compared to conventional resistance welding machines. (Typically a 15Kva stored energy projection welder can weld components, which could normally be achieved on 75 to 100 Kva conventional A.C. projection welder. Blackening and distortion at weld joint are hardly noticeable leading to excellent aesthetics and leaving almost no mark on the other side of the weld. Welding near heat sensitive parts is possible. Dissimilar metals welding possible. Machine can work on Generator set as it is operates on three phase. Minimum heating of components. Water-cooling not required for electrodes due to very short weld times. Cost of manufacture and maintenance of electrodes and fixtures is reduced considerably. Welding of heat sensitive parts possible. Applications Projection Nut/bolt welding Automobile components. Sheet metal fabrication. Auto electrical. Stainless steel cookware and kitchenware Leak proof welds Fabricated stainless steel impellers Switchgear Whitegoods (Refrigerators, Microwaves, water heaters) Control Panels and cabinets Cap nuts Carbon Brush assembly Hollow metal doors and clean-rooms Aero engine & Aerospace components Heavy duty Transformers Batteries Hydraulics Name plate welding Semiconductors Super market displays Diamond tools Ball to Rod welding Brake Shoe Oil port to cylinder tube welding Relays & switchgear components True 1507279430
CD Stud Welding Machine Model- 08 & Model- 10
CD Stud Welding Machine Model- 08 & Model- 10 INR 0 INR 0 Capacitor Discharge Stud Welders– CD 08 & CD 10: We are proud to introduce a line of stud welding equipment. Our products are well known for quality and reliability, and these capacitor discharge welders are no exception. Users will be pleased with the sophisticated electronic features and outstanding welding quality with these compact, lightweight stud-welding units. In addition, the guns are small and light and offer individual settings for optimum weld quality. Superior reliability and ease of use makes these studs welding systems an excellent choice for many customers. CD Stud Welding Process: Due to the very short weld times, the CD welding process permits the welding of small-diameter studs to thin, lightweight materials. The weld cycle can be completed in 0.01 seconds on material as thin as 0.020" (0.5mm). These fast weld times minimize heat buildup, resulting in welds with very little distortion, discoloration, or burning. Therefore, this type of process is often used when appearance is a critical product feature. The CD stud welding method, used mainly for welding mild steel, stainless steel, and aluminum studs. It requires a specially designed stud with a projection on its weld end. This tip provides accurate welding time control with precise repeatability. CD Advantages: This process creates high integrity welds even on thin gauge materials. Additionally, it allows the welding of dissimilar metals because the weld penetration is so slight that metallurgical problems are prevented. The quality, productivity, and cost advantages include: attractive appearance with minimal burn, strength in lightweight applications, minimal backside marking, a fast process with fewer assembly steps, labor savings, and fabrication savings. Features: • High Weld strength – cross-sectional weld. Full stud strength is developed. The weld is as strong as the stud and parent metal • Cost Saving – Eliminates the cost of secondary operation, associated equipment and cost of this operations • Reliability – because of the precisely controlled current and time offered by the equipment, consistent results are assured • High Production Speed – Depending on the equipment used and the stud diameter, duty cycles can range between 5 to 22 studs per minute • Very safe – Low voltage at the gun • Eliminated secondary operation – No need to drill, OR tap holes, No rivet heads, bolts, nuts or washers CD Applications: CD welding can be used for: Electrical Panel, doors, hardware, cookware, jewelry, houseware, electrical/electronic chassis, etc. True 1507274141

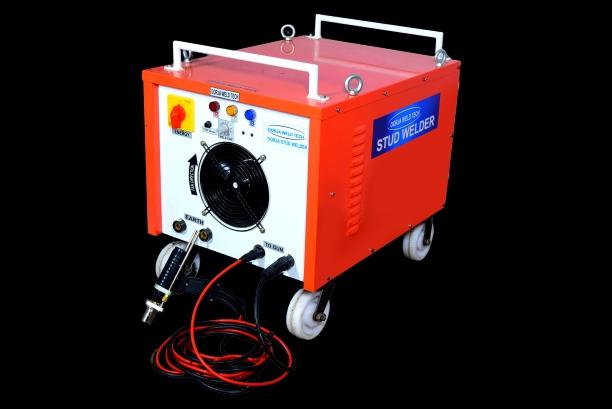

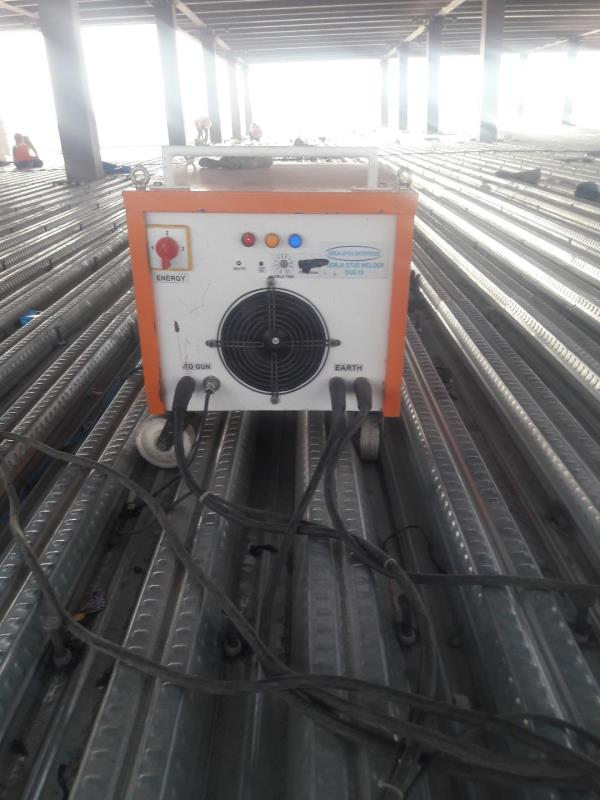

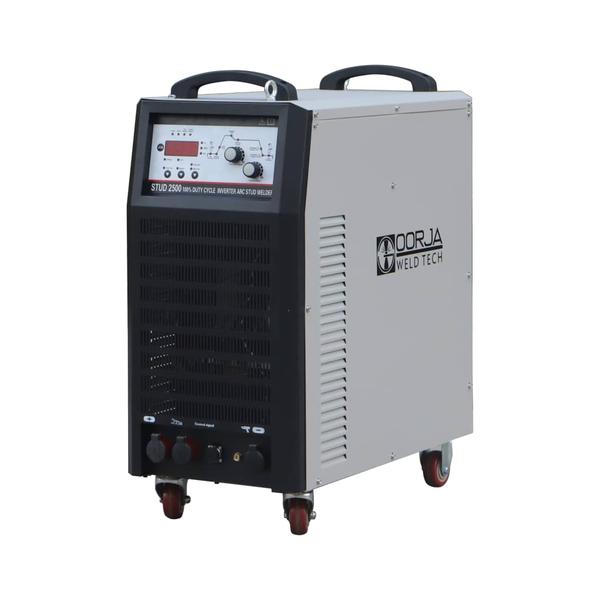

Drawn Arc Stud Welding Machines
Drawn Arc Stud Welding Machines INR 0 INR 0 Drawn arc stud welding is a process by which a metal stud is joined to a metal work piece by heating both parts with an electrical arc. It permits strong, one-sided welds on base metals with thicknesses starting at 8 mm and produces welds in as little as 2500 millisecond. This method provides highly reliable fastening for a wide variety of applications and allows almost any size or configuration of a metal stud to be welded quickly to a work piece, while providing maximum weld penetration and reliability. Range & Model: • Weld Stud range from 3mm to 25mm • Models – OUE – 8, OUE –12, OUE –16, OUE –19, & OUE –25 Advantages of Drawn Arc: • High Weld strength – full cross-sectional weld. The bond is stronger than surrounding metal. • Filler material is not required therefore saving cost. • The one-sided fastening process permits greater design versatility • Increased productivity • Economic advantages- Savings on labor and fabrication costs • Simple in operation.Semi-skilled person can also do welding. Applications: • Construction – bridges, building, conduit & piping • Automotive • Furniture • Metal products • Industrial • Shipbuilding • Electrical & Electronic enclosures True 1507274389
SHEAR CONNECTORS INR 0 INR 0 Our headed shear connectors can be used for welding on flat surfaces, inside/outside angles & "thru deck". Headed Shear Studs are designed to interconnect (tie) the concrete slabs to the load bearing steel beams. This composite construction resists Shear loading between the concrete and the steel beam and increases the loading capacity in steel buildings, bridges, column, etc. “OORJA” make Studs meet all applicable as per IS standards. We can supply studs of almost any size. • Standard Headed Shear Stud Range: The Headed Shear Studs will be made to order as per request. • Standard Diameters: 12mm, 16mm, 19mm, 22mm & 25mm • Length: They are available from 50mm to 300mm. Generally the length is specified before weld. When the studs are welded to a base metal they will be approximately 5 to 8mm shorter after welding. True 1507274624

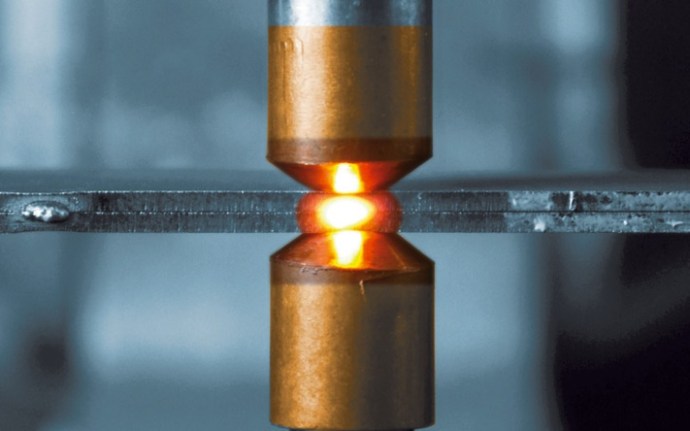

SPOT WELDING MACHINE INR 0 INR 0 Oorja Udyog’s Pneumatically operated pedestal spot/projection welders are widely used by the metalworking industries today because it offers the quickest and most economical method of joining Weldable Base Metals. This general purpose machine represents a new high achievement in welder design and engineering, and embodies advantages which afford the greatest performance. Its modern design has incorporated ruggedness, accuracy, and reliable uninterrupted performance – all of which are of utmost importance to high production runs. Advantages Some of the key features that set our machine ahead of the competition are: • Robust frame design • Adjustable upper ram, precision manufactured, with heavy duty guides to maintain the tolerances • Exclusive use of copper core transformers • All copper is Electrolytic Grade • Designed and built in India • Frame: Rugged, heavy gauge, all steel body, strongly reinforced with welded stiffeners and ribs on heavy duty base. • Accurately machined guide surfaces travel on anti-friction pads for low inertia, friction free movement. Applications • Nut/bolt welding • Automobile components. • Sheet metal fabrication. • Auto electrical. • Stainless steel cookware and kitchenware • Switchgear • Control Panels and cabinets • Hollow metal doors and clean-rooms • Aero engine & Aerospace components • Heavy duty Transformers • Hydraulics • Super market displays • Whitegoods (Refrigerators, Microwaves, water heaters) STANDARD SPECIFICATIONS • KVA Sizes: 30, 50, 75, 100 or 150 • Power Supply: 220 or 415 V, 50Hz True 1507279234
STUD WELDING SERVICES INR 0 INR 0 We are offering high quality Stud Welding Services to meet the requirements of our customers. These services are well designed and are highly reliable in nature. Features: Reliable Durable Affordable True 1507280804
Battery Spot Welding Machine Capacitor Discharge type.
Battery Spot Welding Machine Capacitor Discharge type. INR 0 INR 0 475 Watts,Max Charging Voltage -32 V ,Transistor Switching For Better Energy Control. Machines includes : Controller Electrodes Ground Cable False 1507362858

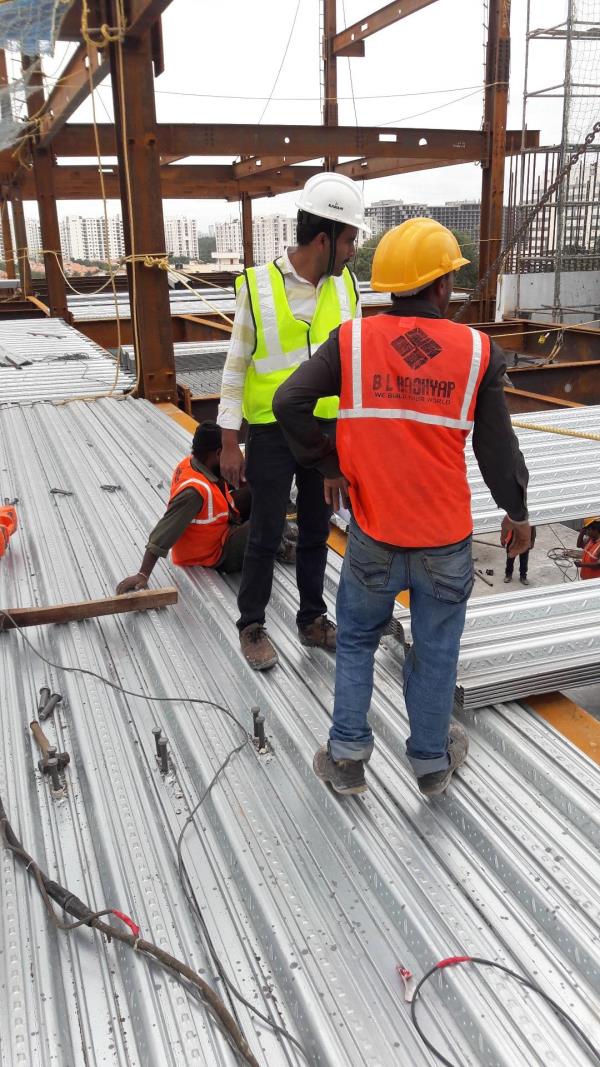

Deck Sheet Fixing Services
Deck Sheet Fixing Services INR 0 INR 0 We are one the leading service providers for Deck Sheet Laying , Fixing,Roofing , Cladding and Stud Welding We have a experienced team of around 50 people and can take up big projects all over India. True 1507364776
